Description

Weight Capacity – Uncoiler 20,000 Lb Max
Recoiler 15,000 Lb Max

Gauge Capacity – 25 Ga Min to 11 Ga Max

Slit Width – .500” Min to 36” Max
Incoming OD – 52” Max – Outgoing OD 52” Max
Incoming ID 20”-24” Exit ID 20”

Cut Capacity
30 Cuts of .075
15 Cuts of .125 – 7 Cuts of .1875”

LINE COMPONENTS

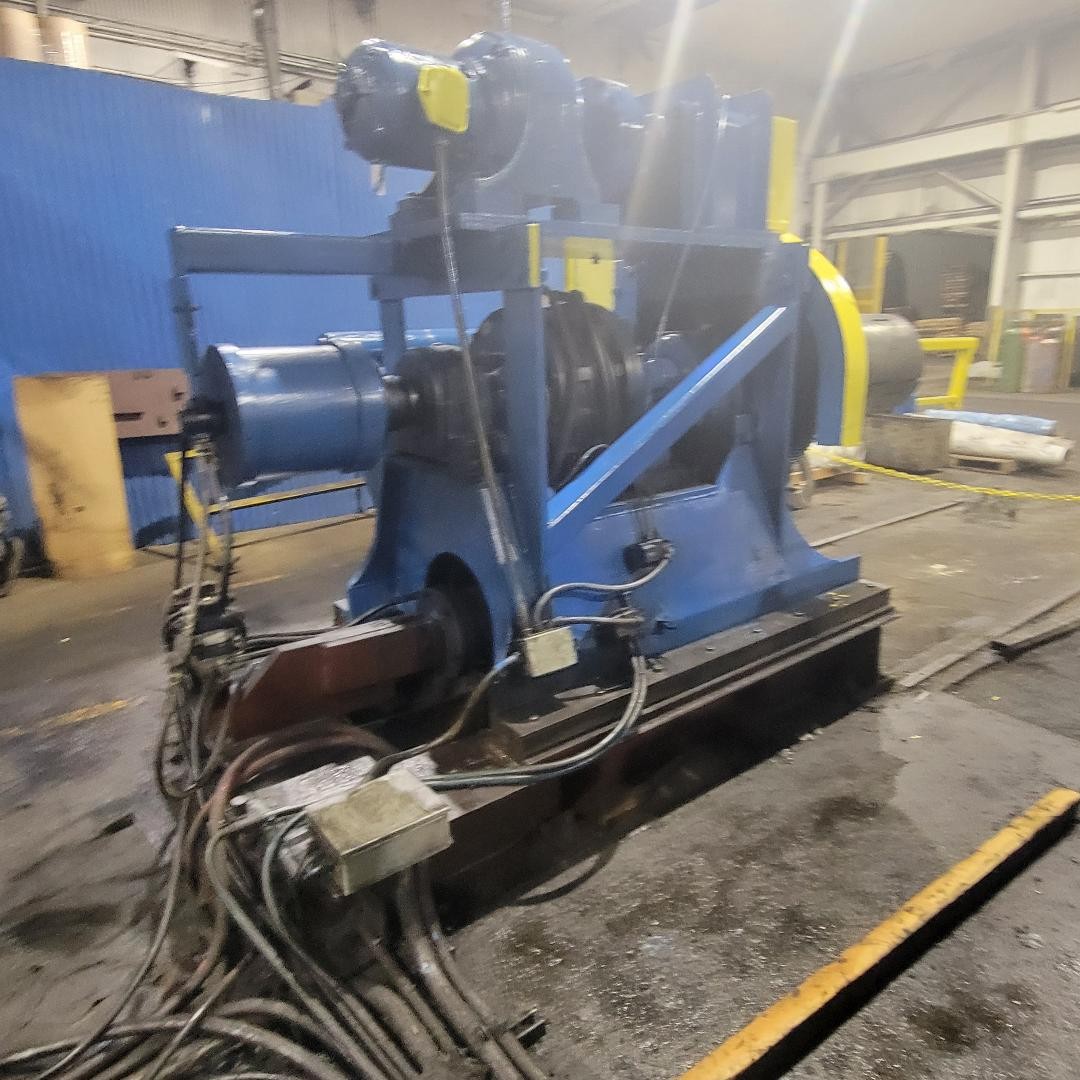

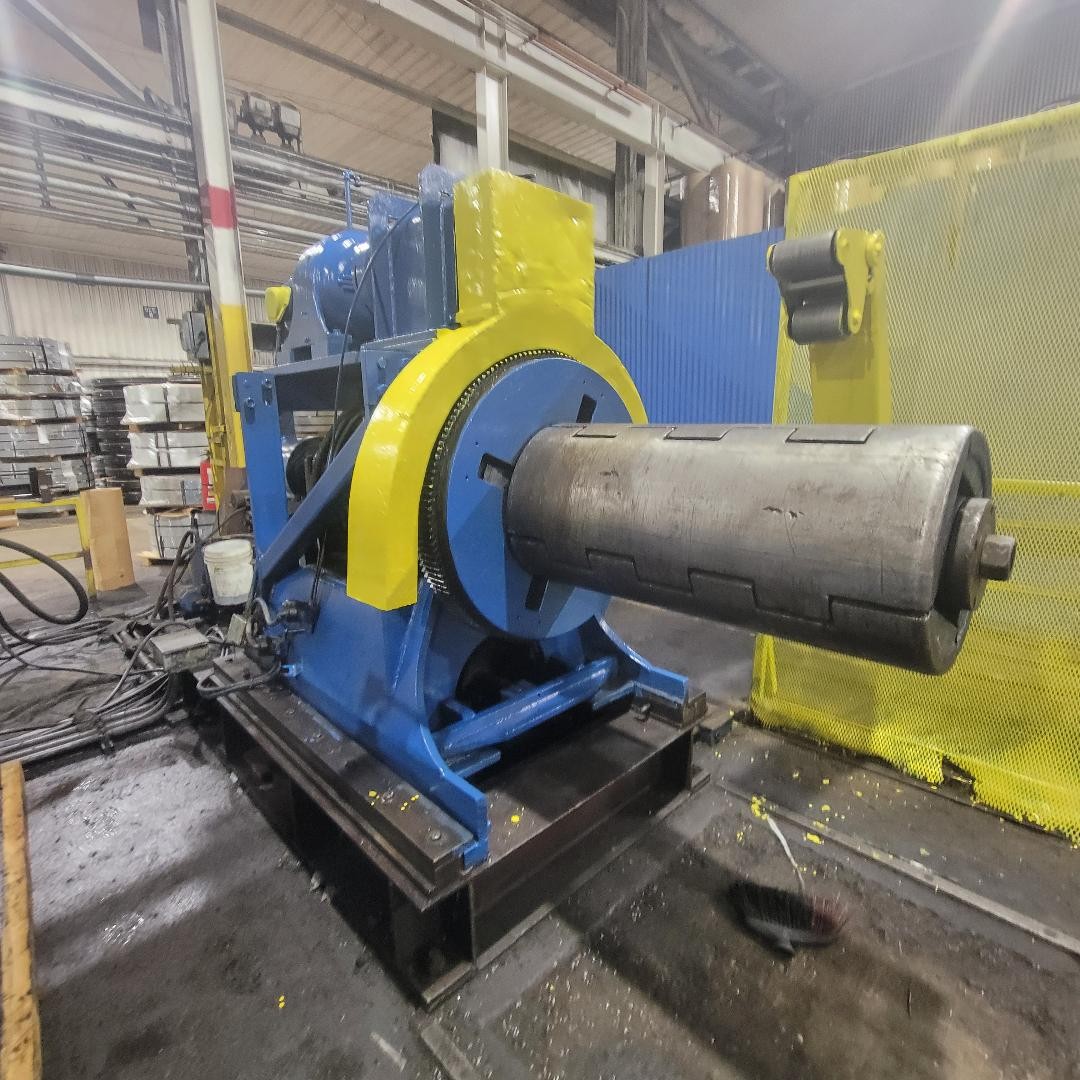

Uncoiler
Hydraulic expansion, AC feed-up threading drive, water-cooled brake, over-arm hold down roll, self-contained heat exchanger.

Hydraulic Motor-Powered Entry Pinch Rolls

7” Diameter x 48” Wide Slitter Head
Slitter knife tooling

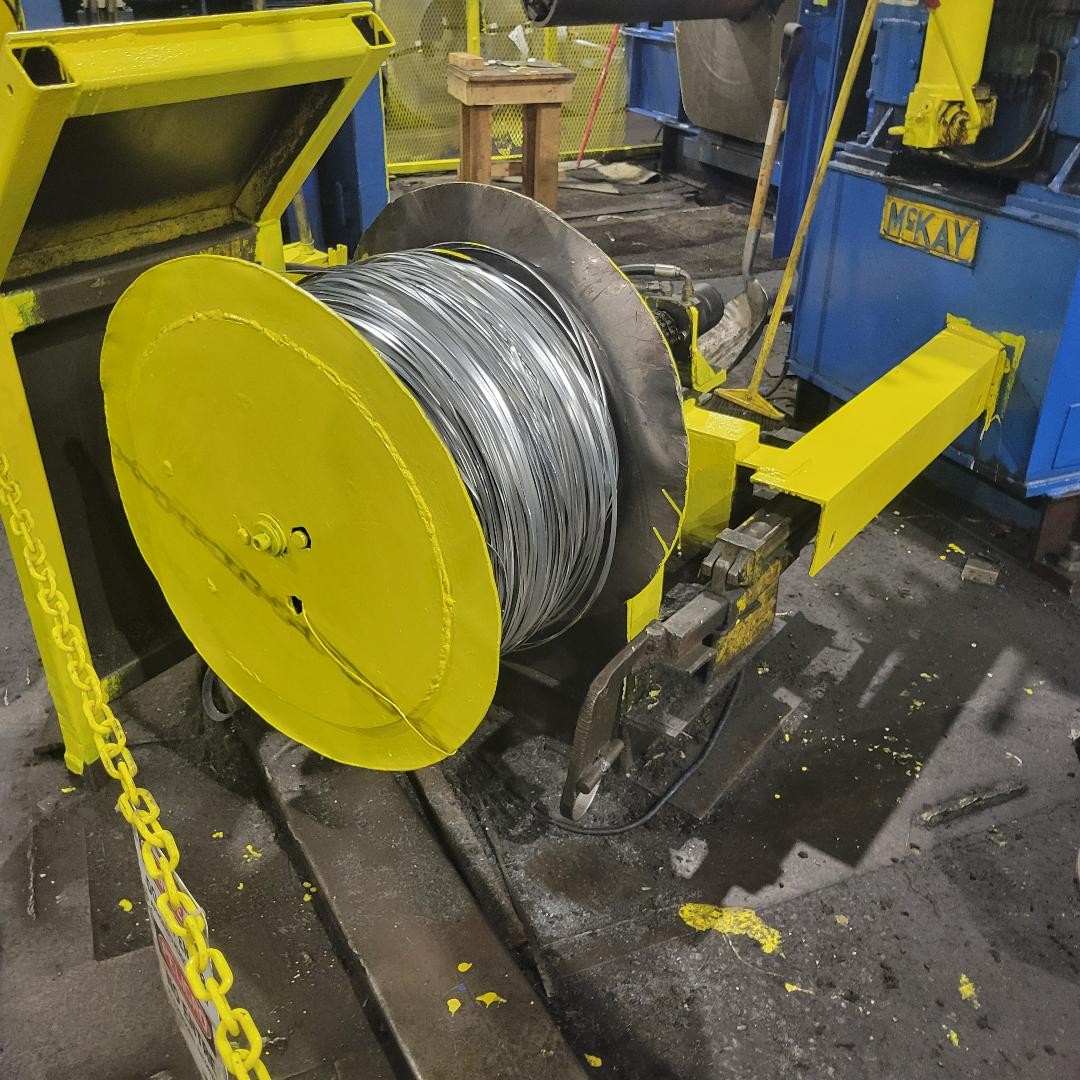

Hydraulic Motor-Powered Scrap Winder

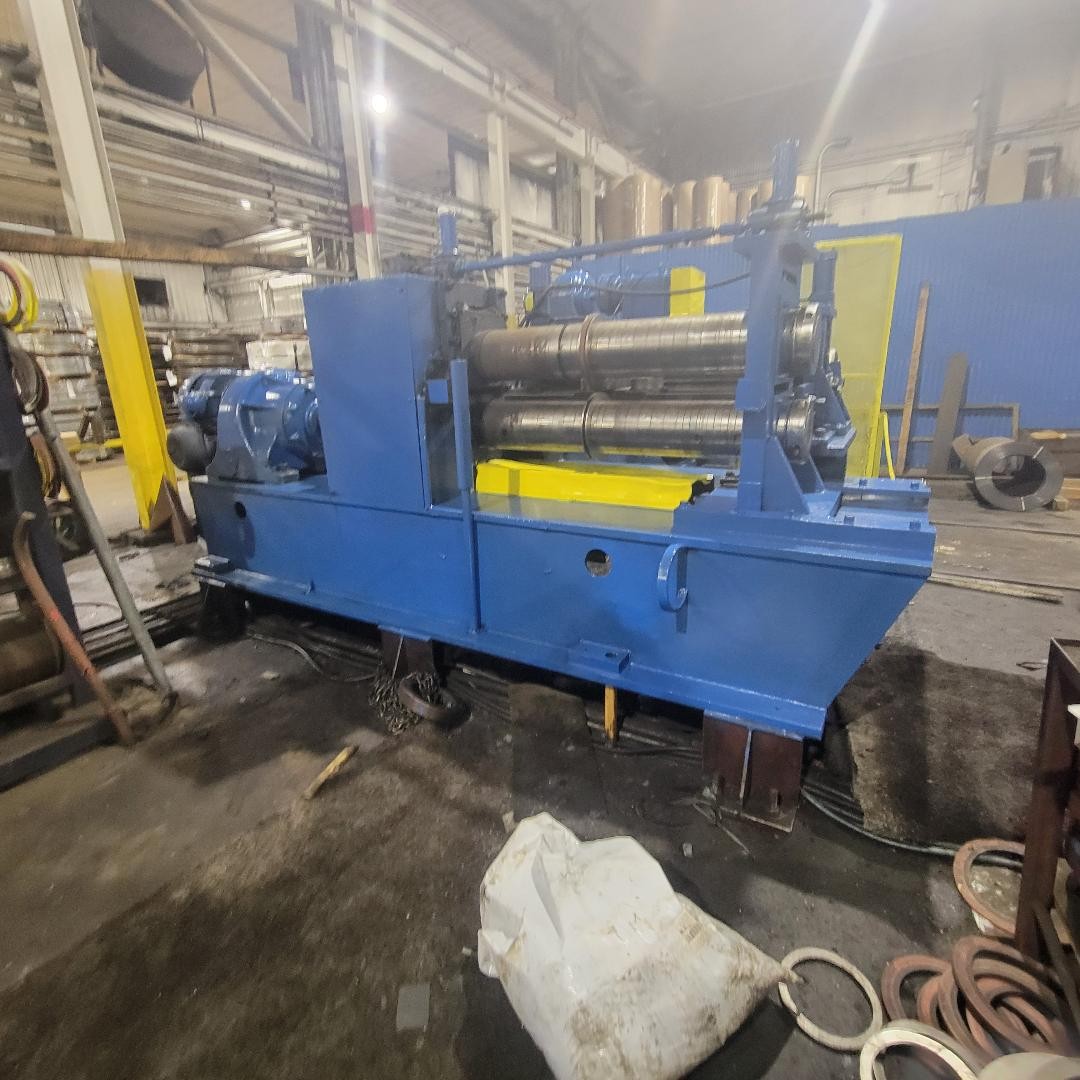

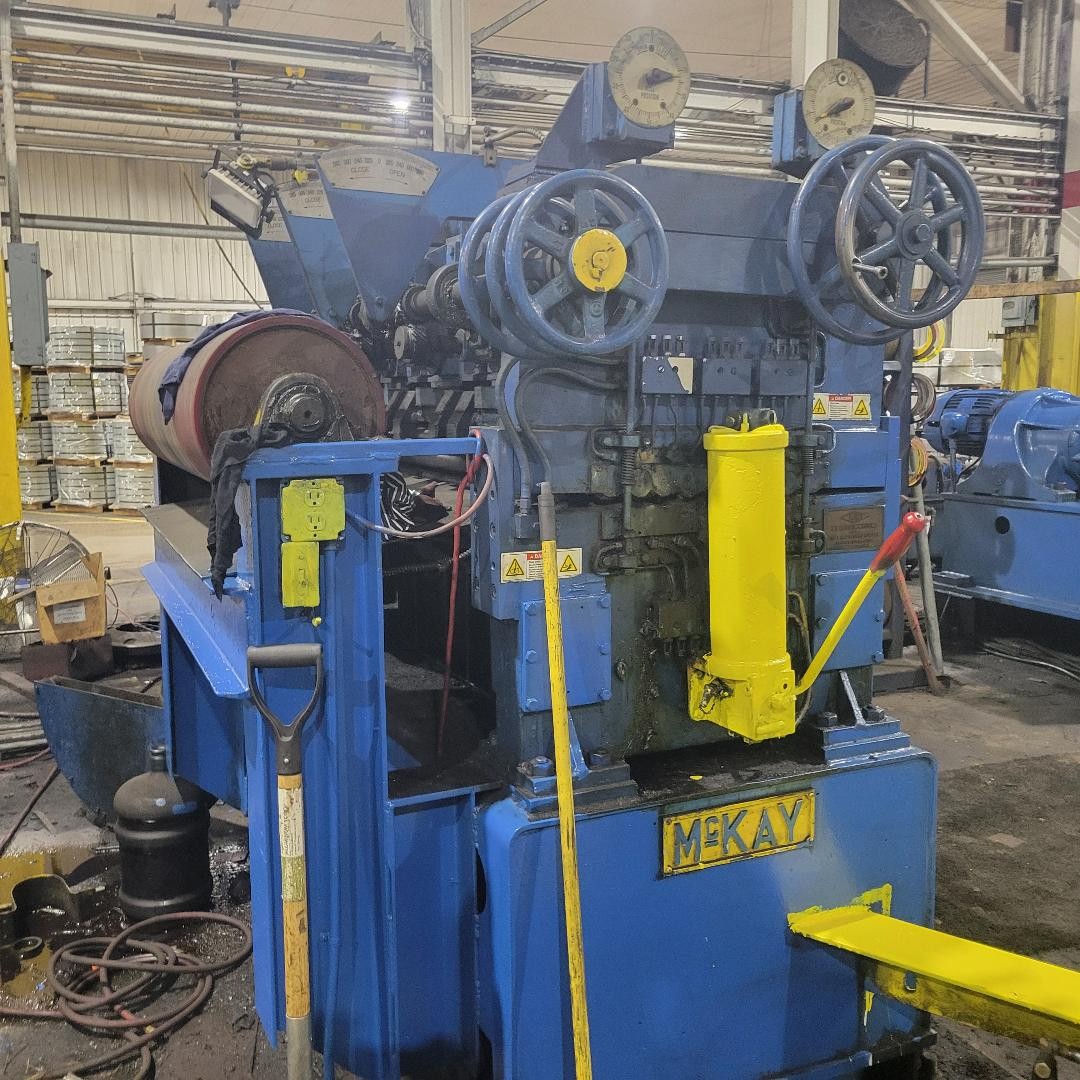

McKay Backed-up Leveler
Exit deflector roll

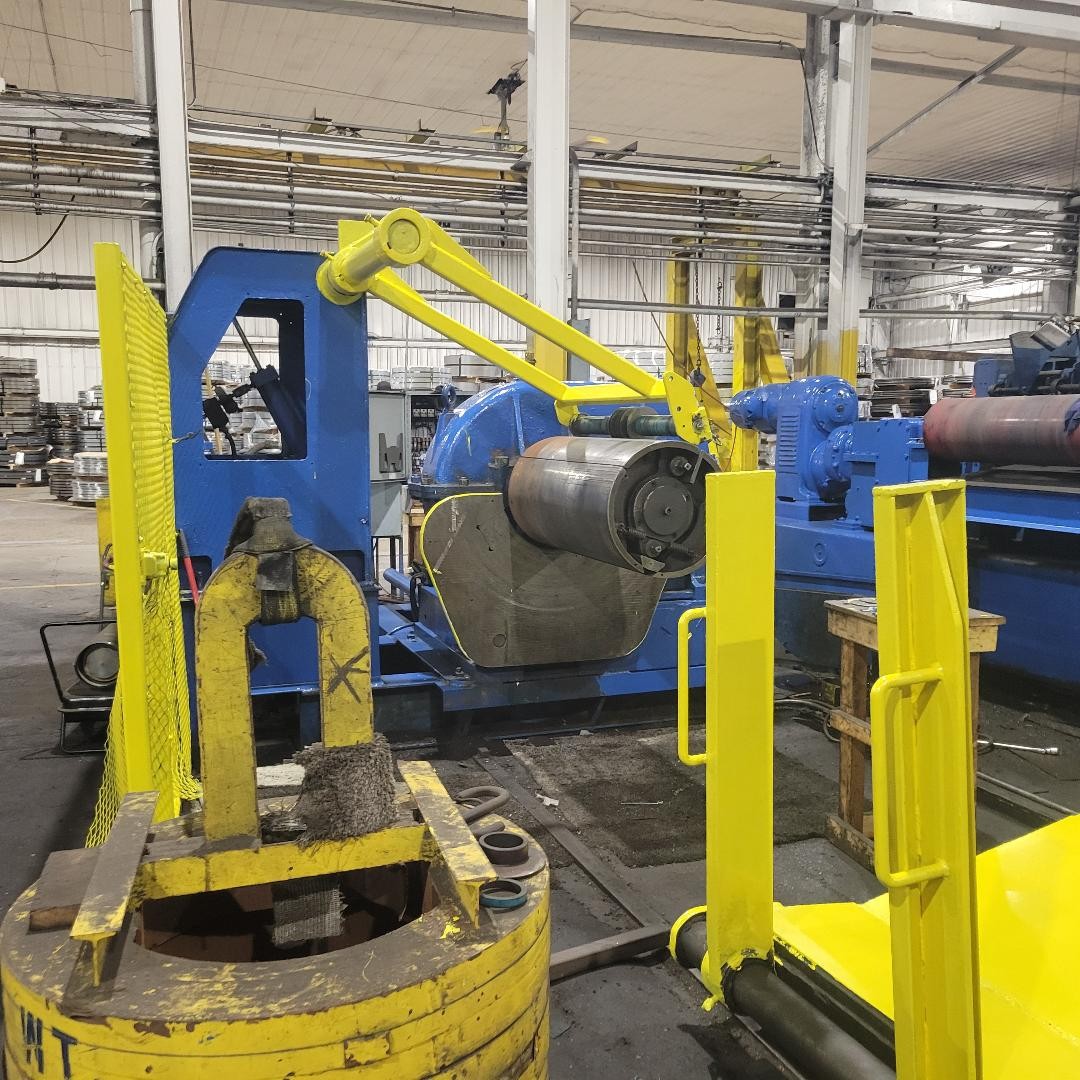

Recoiler
20” drum diameter, manual drum expansion, hydraulic push-off plate, over-arm separator, tooling bar, DC motor driven.

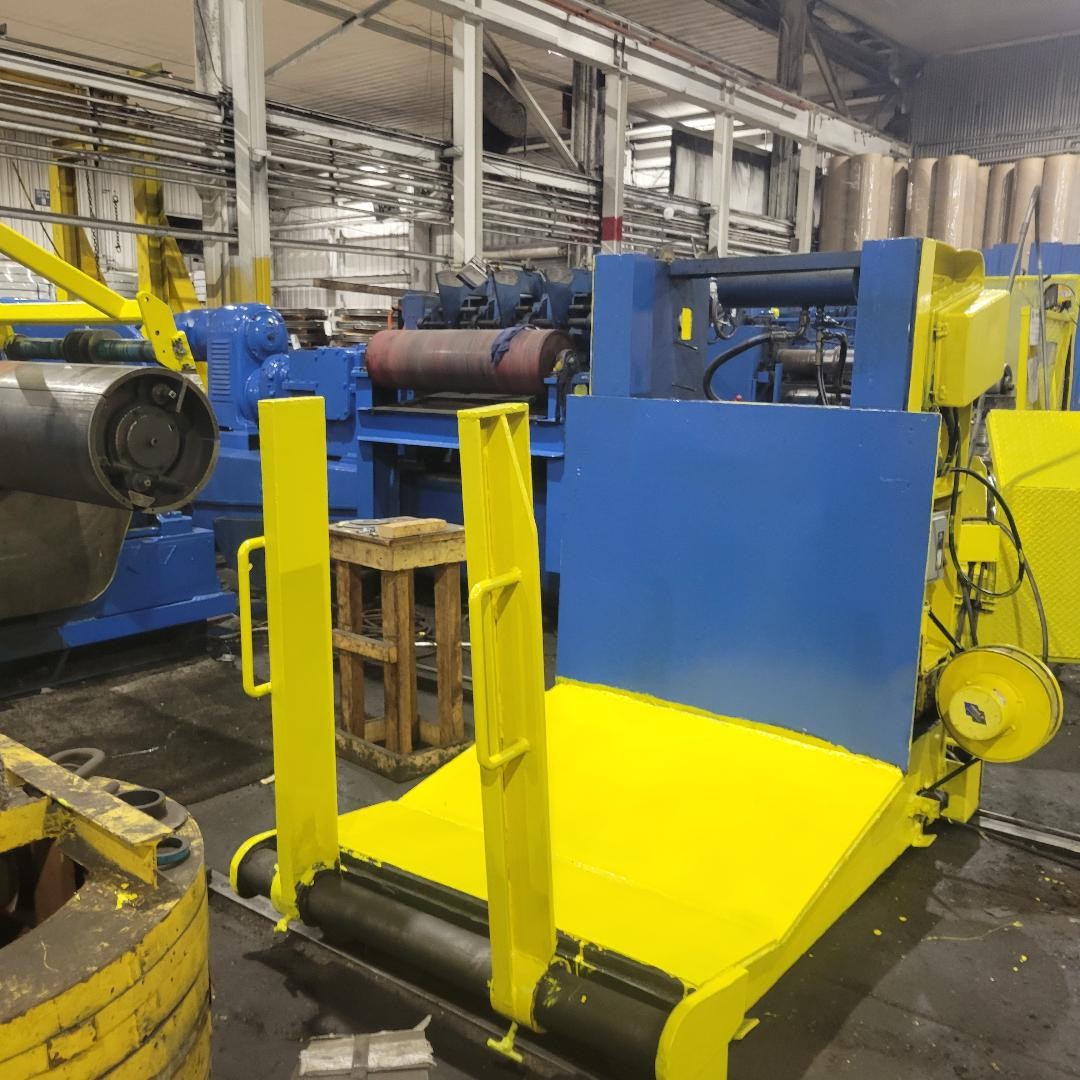

Exit Hydraulic Coil Car

Exit Turnstyle

Line Hydraulics
